CG Emtron Solar VFDs

Product Details:

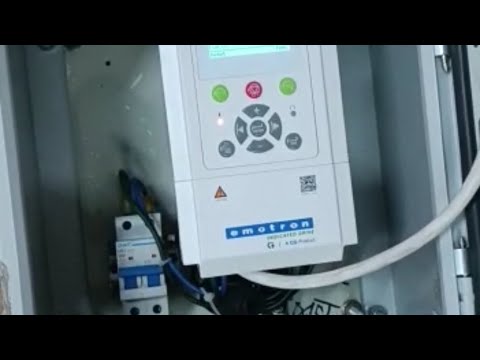

The CG Emotron VSR48009 is a 4.0kW solar pumping VFD designed for efficient conversion of solar DC input to stable AC output for three-phase motors. With a high MPPT efficiency of 99%, it optimizes energy utilization for applications such as agriculture, livestock watering, borewells, and village water distribution. The VSR48009 is built for tough conditions with hybrid input compatibility and robust protection against heat, dust, and motor faults.

Technical Specifications:

• Motor Power: 4.0 kW

• Max DC Input Current: 15 A

• Output Current: 9 A

• Input Voltage Range: 230 VDC – 800 VDC

• MPPT Operating Range: 450–600 VDC

• Recommended Voc: 600–700 VDC

• MPPT Efficiency: 99 Percent

• Recommended Solar Array: 6.0 to 6.5 kWp

• Dimensions (mm): 186.6 x 116 x 175

• Weight: 3 kg

Key Features:

• MPPT Efficiency of 99% for optimized solar energy output

• Soft Start Mechanism to minimize mechanical wear

• 200 Percent Overload Capability to handle motor load surges

• AC + DC Input support for hybrid system configurations

• Intelligent Day/Night Mode with automatic sleep/wake functionality

• IP-Rated Design for reliable outdoor operation

• LCD Panel for real-time pump performance monitoring

• Comprehensive Motor Protection including thermal, stall, dry run, and overload safeguards

• Modbus RS485 Communication for easy monitoring and control

Best Applications:

• Solar-powered irrigation pumps

• Farm and livestock watering

• Borewell and tube well pumping

• Agricultural water management

• Off-grid or remote water supply systems

Why Choose CG Emotron VSR48009:

The CG Emotron VSR48009 offers high MPPT efficiency, durable performance, and robust protection for off-grid and rural applications. Built with smart automation and hybrid compatibility, it is the ideal solution for reliable solar-powered water pumping.

Additional Information:

• Production Capacity: Standard
• Delivery Time: Standard

Product Details:

The CG Emotron VSR48017 is a 7.5kW engineered for reliable and energy-efficient water pumping in off-grid and agricultural applications. With 99% MPPT efficiency, it ensures optimal power conversion from solar panels to three-phase motors. The VSR48017 is built for harsh environments and supports both DC solar and AC hybrid inputs, making it ideal for remote borewell systems and irrigation projects.

Technical Specifications:

• Motor Power: 7.5 kW

• Max DC Input Current: 30 A

• Output Current: 17 A

• Input Voltage Range: 230 VDC – 800 VDC

• MPPT Operating Range: 450–600 VDC

• Recommended Voc: 600–700 VDC

• MPPT Efficiency: 99 Percent

• Recommended Solar Array: 11 to 12 kWp

• Dimensions (mm): 256 x 186 x 195

• Weight: 5.6 kg

Key Features:

• 99 Percent MPPT efficiency for maximum solar energy utilization

• Soft Start and Stop functions reduce stress on motor and pipes

• 200 Percent overload handling for demanding conditions

• AC and DC Input Support for hybrid solar-generator setups

• Intelligent Sleep/Wake operation based on sunlight detection

• Rugged construction with dust and heat resistance

• LCD Display with real-time performance and oscilloscope interface

• Full motor protection including dry run, thermal, stall, and overload

• Modbus RS485 ready for remote integration and monitoring

Applications:

• Agricultural irrigation systems

• Livestock and dairy farm water supply

• Borewell and tube well pumping

• Rural and off-grid water management

• Solar-powered water distribution in remote areas

Why Choose CG Emotron VSR48017:

The CG Emotron VSR48017 delivers industrial-grade solar performance with robust build quality and advanced MPPT tracking. Ideal for off-grid, remote, and rural areas, it offers ease of installation, intelligent automation, and long-lasting durability.

Additional Information:

• Production Capacity: Standard
• Delivery Time: Standard

Product Details:

The CG Emotron VSR48024 is an 11.0kW  built for large-scale and off-grid water pumping systems. With advanced MPPT technology delivering 99 percent efficiency, it ensures optimal motor output even during inconsistent solar conditions. Ideal for high-capacity agricultural irrigation and deep borewell pumping.

Technical Specifications:

• Motor Power: 11.0 kW

• Max DC Input Current: 35 A

• Output Current: 24 A

• Input Voltage Range: 230 VDC – 800 VDC

• MPPT Operating Range: 450–600 VDC

• Recommended Voc: 600–700 VDC

• MPPT Efficiency: 99 Percent

• Recommended Solar Array: 16 to 17 kWp

• Dimensions (mm): 256 x 186 x 195

• Weight: 5.8 kg

Key Features:

• High MPPT Efficiency for maximum solar power use

• Smooth motor start reduces wear and energy consumption

• 200 Percent overload handling for tough motor loads

• Dual input: Solar DC and AC grid/generator support

• Auto Sleep/Wake function based on sunlight detection

• LCD Display with real-time operational data

• In-built protections: Dry run, overload, thermal, stall

• RS485 Modbus for external monitoring integration

Applications:

• Large-scale irrigation and farm water systems

• Deep borewell and high-lift water pumping

• Livestock and dairy water supply

• Solar-based rural water projects

• Remote and power-deficient installations

Why Choose CG Emotron VSR48024:

Built for Indian field conditions, the VSR48024 combines solar performance, protection, and flexibility. It ensures efficient and reliable water pumping for critical agriculture and rural operations with minimal maintenance.

Additional Information:

• Production Capacity: Standard
• Delivery Time: Standard

Product Details:

The CG Emotron VSR48032 is a 15.0kW  engineered for large-scale irrigation, borewells, and remote water pumping systems. With an advanced MPPT algorithm offering 99 percent efficiency, it ensures maximum energy usage from your solar array in all sunlight conditions.

Technical Specifications:

• Motor Power: 15.0 kW

• Max DC Input Current: 50 A

• Output Current: 32 A

• DC Input Voltage Range: 230 VDC – 800 VDC

• MPPT Range: 450 – 600 VDC

• Recommended Voc: 600 – 700 VDC

• MPPT Efficiency: 99 Percent

• Solar Array Recommendation: 22 to 23 kWp

• Dimensions (mm): 256 x 186 x 195

• Weight: 6.2 kg

Key Features:

• Real-Time MPPT Control for efficient solar conversion

• 200 Percent Overload Handling for motor protection

• Hybrid Input: Compatible with both solar DC and grid AC

• Smart Wake/Sleep Modes based on solar availability

• Advanced LCD for performance monitoring

• Integrated protections: Dry run, thermal, stall, overload

• RS485 with Modbus for remote diagnostics

• Rugged construction: Dust, heat, and humidity resistant

Applications:

• Commercial irrigation systems

• Large farm and agricultural water supply

• Deep borewell and tube well pumping

• Dairy, livestock, and cattle water use

• Solar water projects in remote and off-grid areas

Why Choose CG Emotron VSR48032:

Built for performance and reliability, the VSR48032 offers powerful water delivery, hybrid input flexibility, and high solar efficiency. It’s the perfect VFD for heavy-duty solar pumping tasks across rural and industrial sectors.

Additional Information:

• Production Capacity: Standard
• Delivery Time: Standard

Product Details:

The CG Emotron VSR48045 is a powerful 22kW (30HP)  engineered for large-scale water pumping operations in agricultural, commercial, and rural environments. It offers 99% MPPT efficiency, maximizing your solar yield even in inconsistent light.

Technical Specifications:

• Motor Power: 22.0 kW

• Max DC Input Current: 70 A

• Output Current: 45 A

• Recommended Solar Array: 30 – 31 kWp

• DC Input Voltage Range: 230 – 800 VDC

• MPPT Operating Range: 450 – 600 VDC

• Recommended Voc: 600 – 700 VDC

• MPPT Efficiency: 99 Percent

• Dimensions (mm): 256 x 186 x 195

• Weight: 7.2 kg

Key Features:

• 99% MPPT Efficiency – For maximum solar utilization

• 200% Overload Capacity – Supports heavy-duty motor loads

• Dual Input (AC & DC) – Works with solar or grid supply

• Auto Sleep/Wake Function – Based on sunlight levels

• Advanced Motor Protections – Dry run, overload, stall, thermal

• Oscilloscope-Style LCD – Real-time system diagnostics

• RS485 Modbus Support – Enables remote monitoring/control

• Rugged Build – Resistant to heat, dust, and moisture

Best Applications:

• High-Volume Agricultural Irrigation

• Commercial Farm Water Supply

• Deep Borewell and Remote Water Systems

• Livestock Watering Infrastructure

Why Choose CG Emotron VSR48045:

When high-volume performance meets durability, the result is the VSR48045. Built for critical water supply needs in power-scarce areas, this model offers long-term solar savings and unmatched motor reliability.

Additional Information:

• Production Capacity: Standard
• Delivery Time: Standard

Product Details:

The CG Emotron VSR48075 is a 37kW (50HP)  engineered for industrial-scale irrigation and large off-grid pumping systems. It delivers superior energy efficiency and rugged performance in remote and demanding environments.

Technical Specifications:

• Motor Power: 37.0 kW

• Output Current: 75 A

• Max DC Input Current: 100 A

• Recommended Solar Array: 52 – 55 kWp

• DC Input Voltage Range: 230 – 800 VDC

• MPPT Operating Range: 450 – 600 VDC

• Recommended Voc: 600 – 700 VDC

• MPPT Efficiency: 99 Percent

• Dimensions (mm): 322 x 226 x 220

• Weight: 10.6 kg

Key Features:

• 99% MPPT – Extracts peak solar power with high accuracy

• 200% Overload Capacity – Handles motor surges & tough loads

• AC/DC Dual Input – Compatible with both solar and grid sources

• Auto Sleep/Wake – Operates based on sunlight intensity

• Smart Protection – Dry run, stall, overload, and thermal safety

• LCD Panel – Oscilloscope-style monitoring with real-time feedback

• RS485 Modbus – Ready for remote control & integration

• Industrial Build – Heat, dust, and moisture resistant for harsh conditions

Ideal Applications:

• Industrial and Commercial Agricultural Irrigation

• Deep Borewell & Tube Well Water Systems

• Rural Off-Grid Pumping Infrastructure

• Livestock and Dairy Water Supply Systems

Why Choose CG VSR48075:

When the need is power, performance, and durability, the VSR48075 delivers. Designed for heavy-duty solar water pumping in remote or grid-challenged areas, it’s a trusted choice for commercial operators and large-scale farms.

Additional Information:

• Production Capacity: Standard
• Delivery Time: Standard

Product Details:

The CG Emotron VSR48091 is a 45kW (60HP)  built for large-scale irrigation and high-volume water pumping systems. Its advanced MPPT algorithm ensures maximum solar energy conversion in varying sunlight conditions.

Technical Specifications:

• Motor Power: 45.0 kW

• Output Current: 91 A

• Max DC Input Current: 110 A

• Recommended Solar Array: 62 – 65 kWp

• DC Input Voltage Range: 230 – 800 VDC

• MPPT Operating Range: 450 – 600 VDC

• Recommended Voc: 600 – 700 VDC

• MPPT Efficiency: 99 Percent

• Dimensions (mm): 322 x 226 x 220

• Weight: 12.1 kg

Key Features:

• 99 Percent MPPT – Optimizes solar energy utilization

• 200 Percent Overload – Handles surge and startup load conditions

• Hybrid Input – Works with both solar panels and electric grid

• Smart Sleep and Wake – Light based intelligent operation

• Full Motor Protection – Overload dry run thermal and stall protection

• LCD Display – Real time diagnostics and user interface

• RS485 Modbus – Remote access and monitoring ready

• Industrial Build – Resistant to dust heat and moisture

Ideal Applications:

• Large Scale Agricultural Irrigation

• High Volume Borewell and Submersible Pumps

• Remote Water Distribution Systems

• Solar Powered Water Infrastructure in Rural Areas

Why Choose CG VSR48091:

With its high power handling capacity and robust solar performance, the CG VSR48091 is the preferred choice for demanding solar pumping needs. Built for durability and seamless performance, it supports reliable water delivery even in harsh and remote locations.

Additional Information:

• Production Capacity: Standard
• Delivery Time: Standard

Product Details:

The CG Emotron VSR48060 is a 30kW (40HP) built for commercial farms, large irrigation setups, and deep borewell systems. It delivers 99% MPPT efficiency and superior motor performance under fluctuating sunlight.

Technical Specifications:

• Motor Power: 30.0 kW

• Max DC Input Current: 80 A

• Output Current: 60 A

• Recommended Solar Array: 42 – 45 kWp

• DC Input Voltage Range: 230 – 800 VDC

• MPPT Operating Range: 450 – 600 VDC

• Recommended Voc: 600 – 700 VDC

• MPPT Efficiency: 99 Percent

• Dimensions (mm): 256 x 186 x 195

• Weight: 8.5 kg

Key Features:

• 99% MPPT Efficiency – Extracts max power from your solar array

• 200% Overload Capacity – Handles heavy-duty motor operations

• AC + DC Dual Input – Compatible with solar and grid sources

• Auto Sleep/Wake – Activates with solar intensity

• Motor Protection – Dry run, stall, overload, and thermal safeguards

• Real-Time LCD Panel – Displays performance diagnostics

• Remote Communication – RS485 Modbus ready

• Industrial Durability – Resistant to dust, heat, and moisture

Best Applications:

• Commercial & Industrial Agricultural Irrigation

• Deep Tube Wells and Borewell Pumps

• Rural & Off-Grid Water Supply Projects

• Livestock Watering Infrastructure

Why Choose CG Emotron VSR48060:

When power, reliability, and solar performance matter most, VSR48060 leads the way. It’s your go-to inverter for high-demand, mission-critical water systems.

Additional Information:

• Production Capacity: Standard
• Delivery Time: Standard

Product Details:

The CG Emotron VSR48038 is an industrial-grade 18.5kW crafted for heavy-duty agricultural irrigation, livestock watering, and borewell systems. It leverages a 99% MPPT algorithm to maximize energy utilization from your solar array—even in fluctuating sunlight.

Technical Specifications:

• Motor Power: 18.5 kW

• Max DC Input Current: 60 A

• Output Current: 38 A

• Recommended Solar Array: 26 – 27 kWp

• DC Input Voltage Range: 230 – 800 VDC

• MPPT Operating Range: 450 – 600 VDC

• Recommended Voc: 600 – 700 VDC

• MPPT Efficiency: 99 Percent

• Dimensions (mm): 256 x 186 x 195

• Weight: 6.5 kg

Key Features:

• 99% MPPT Efficiency – Converts more sunlight into usable power

• 200% Overload Capability – For tough pumping tasks

• Dual Input Support – Operates with solar DC or AC grid/generator

• Auto Sleep/Wake Mode – Based on real-time sunlight

• LCD Display – Oscilloscope-style real-time monitoring

• Built-in Motor Protection – Dry run, overload, thermal, stall

• RS485 Modbus Enabled – For seamless remote control and integration

• Rugged & Reliable – Heat- and dust-resistant with conformal coating

Applications:

• Commercial agriculture and irrigation

• Deep borewell and high-head water pumps

• Livestock and dairy water supply systems

• Off-grid and rural water infrastructure

Why Choose CG Emotron VSR48038:

The VSR48038 is your go-to choice for powering large motors in solar water pumping systems. Designed with advanced solar technology and rugged build quality, it ensures long-term performance, protection, and peace of mind in challenging environments.

Additional Information:

• Production Capacity: Standard
• Delivery Time: Standard

Product Details:

The CG Emotron VSR48112 is a 55kW (75HP) built for commercial and industrial water pumping. Featuring a 99 Percent MPPT efficiency, it ensures maximum energy capture for large-scale operations such as irrigation, borewells, and rural water systems.

Technical Specifications:

• Motor Power: 55.0 kW

• Output Current: 112 A

• Max DC Input Current: 120 A

• Recommended Solar Array: 75 – 80 kWp

• DC Input Voltage Range: 230 – 800 VDC

• MPPT Operating Range: 450 – 600 VDC

• Recommended Voc: 600 – 700 VDC

• MPPT Efficiency: 99 Percent

• Dimensions (mm): 422 x 226 x 220

• Weight: 13.2 kg

Key Features:

• MPPT Efficiency – Real-time solar energy optimization

• 200 Percent Overload – Handles high surge and startup conditions

• AC and DC Dual Input – Hybrid system compatibility

• Light-Based Operation – Intelligent auto sleep and wake functions

• Motor Protections – Thermal stall overload and dry-run safety

• LCD Interface – Live system data and diagnostics

• RS485 Modbus – Remote communication and control ready

• Industrial Design – Built to resist dust moisture and heat

Ideal Applications:

• Commercial Agricultural Irrigation

• Solar Powered Borewell Systems

• Off Grid and Semi Grid Water Infrastructure

• Water Supply for Aquaculture and Rural Areas

Why Choose CG VSR48112:

The VSR48112 offers high power reliability and efficiency for critical water pumping systems. Designed for tough field conditions, it enables consistent solar-driven performance for heavy-duty water management applications.

Additional Information:

• Production Capacity: Standard
• Delivery Time: Standard
